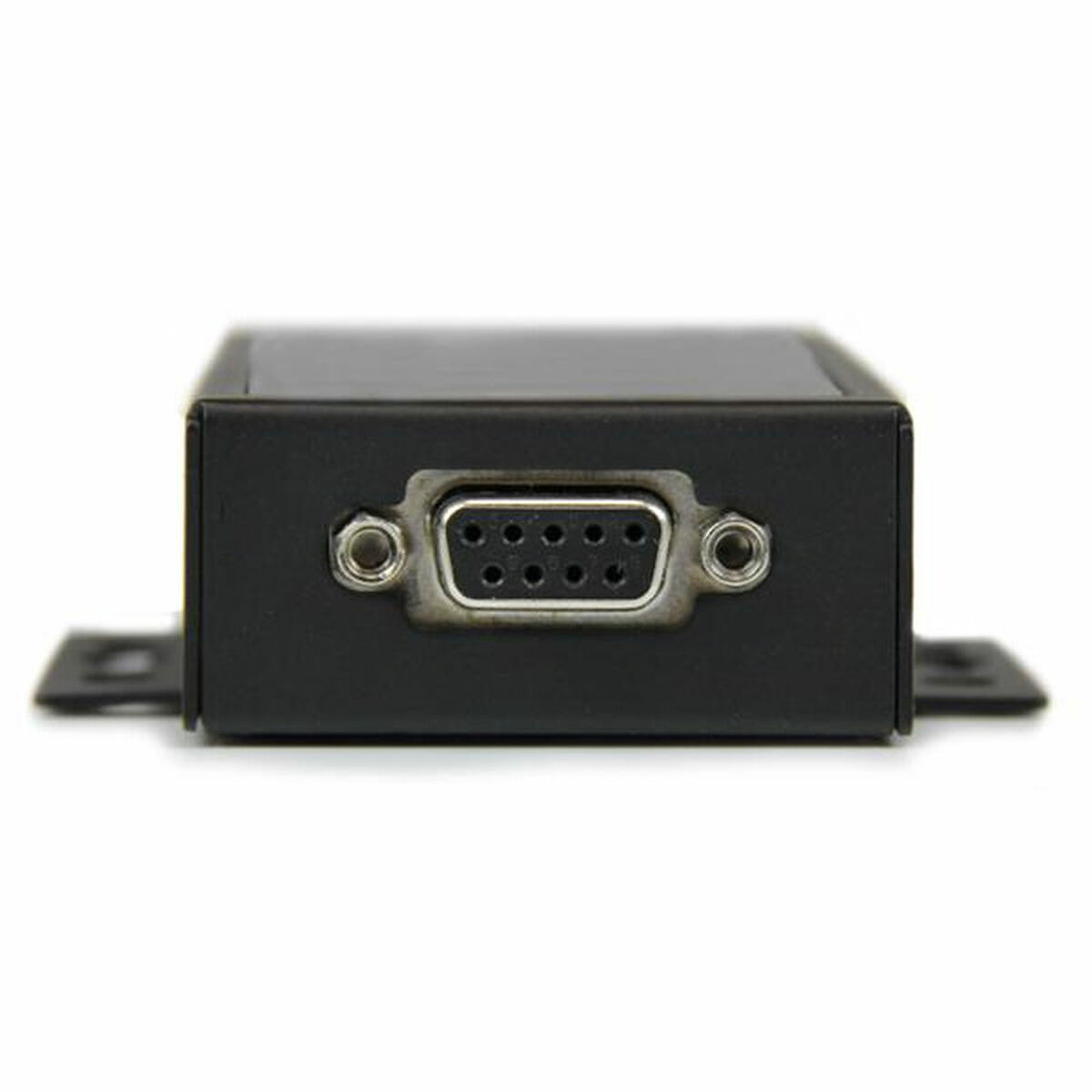

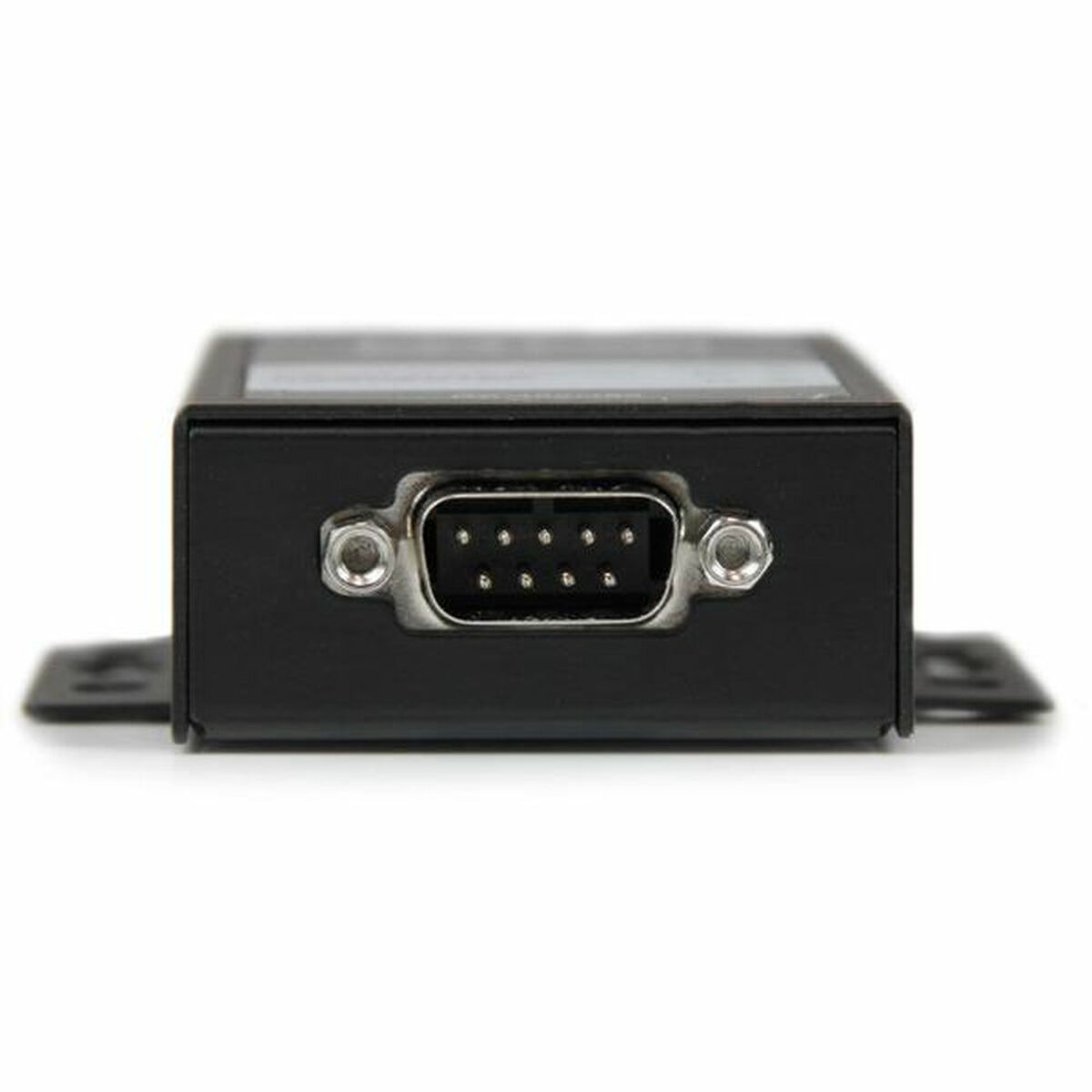

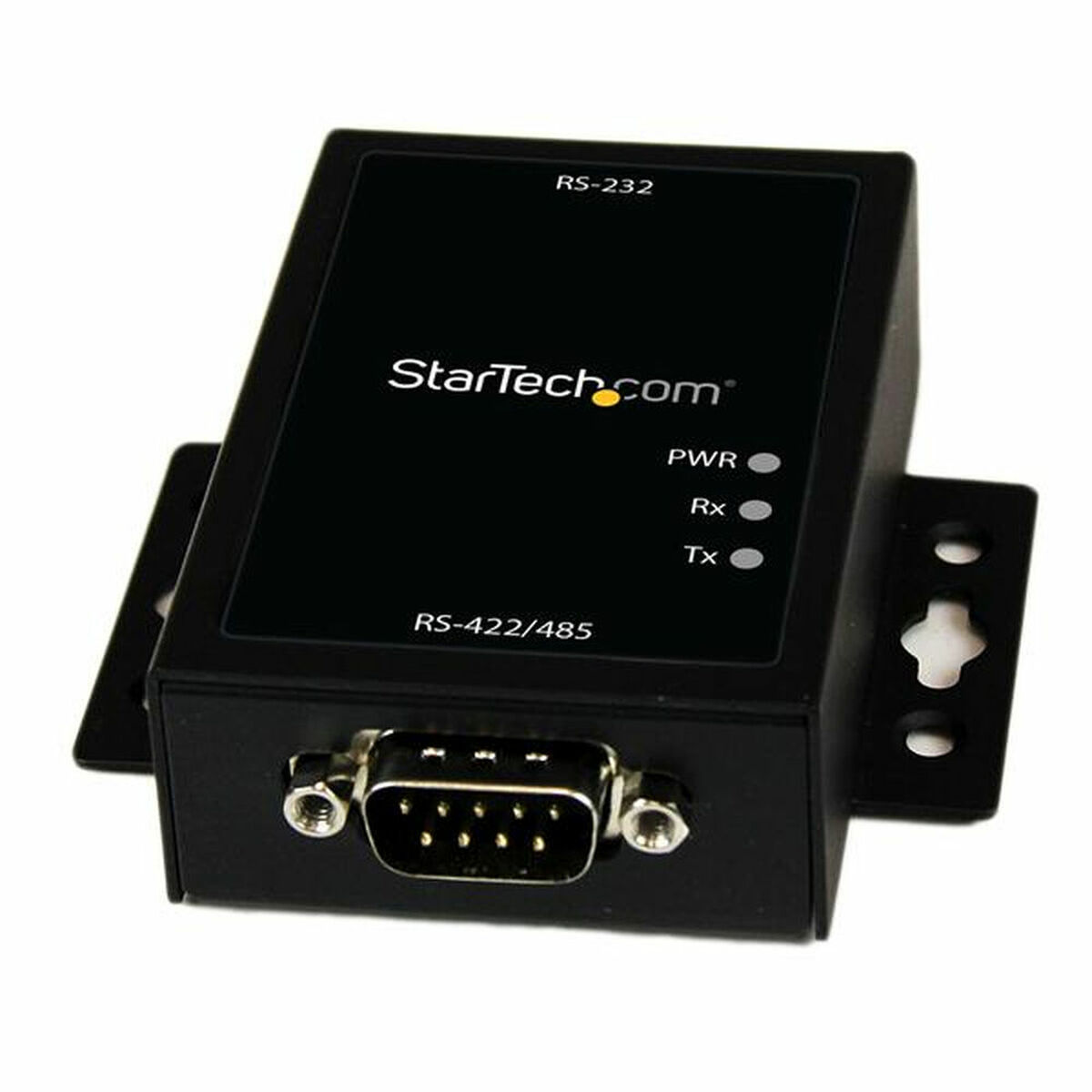

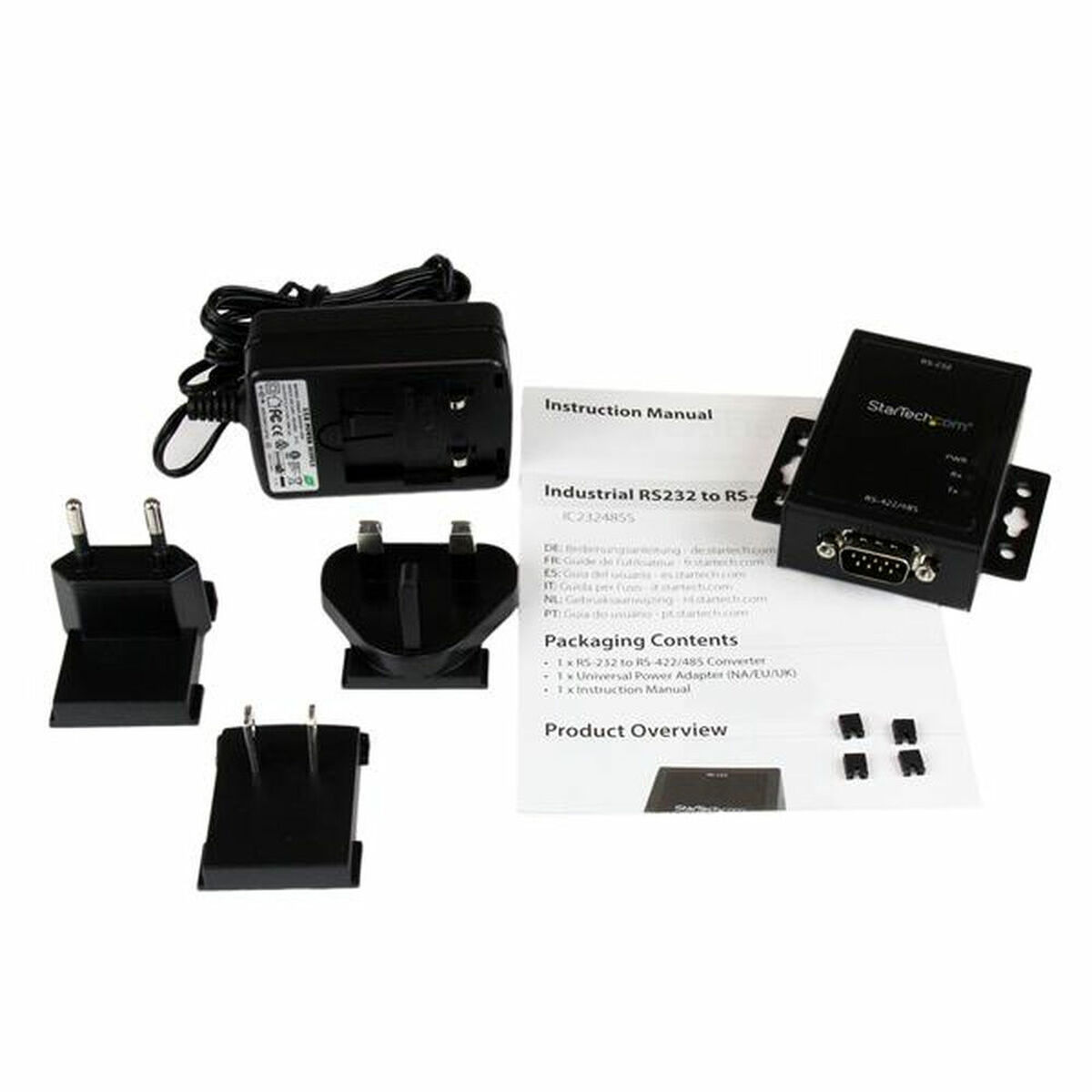

The IC232485S adapter from the Startech brand is an industrial device designed for bidirectional conversion of RS232 to RS-485 and RS422 signals, enabling the adaptation of serial signals in 2- or 4-wire configurations for RS-485 or RS-422 connection, supporting data transfer rates up to 921.6 Kbps. It features a durable metal housing suitable for wall mounting, offering protection and durability in demanding industrial environments. A key feature is the 15 KV ESD protection on all signal pins, safeguarding connected equipment against electrostatic discharges and electrical damage, crucial for high-reliability applications. It also includes LED indicators to continuously monitor power status and data transmission and reception, facilitating real-time supervision. The adapter operates with an input voltage of 110 to 240 V and a current of 0.3 A, ensuring compatibility with standard power ranges. A DIP switch allows manual selection between RS-422 and RS-485 modes, although the device supports automatic mode and baud rate detection, optimizing configuration for different environments. Its capability to operate over distances up to 1200 meters makes it ideal for industrial installations requiring long-distance communication. With compact dimensions of 59 mm wide, 117 mm deep, and 22 mm high, the adapter offers flexibility for mounting and integration into existing systems. It holds international certifications such as CE, FCC, and REACH, confirming its quality and regulatory compliance. In summary, the Startech IC232485S adapter is an essential tool for professionals needing reliable and secure serial signal conversion in industrial settings, combining robustness, advanced protection, and ease of use in a single product.
