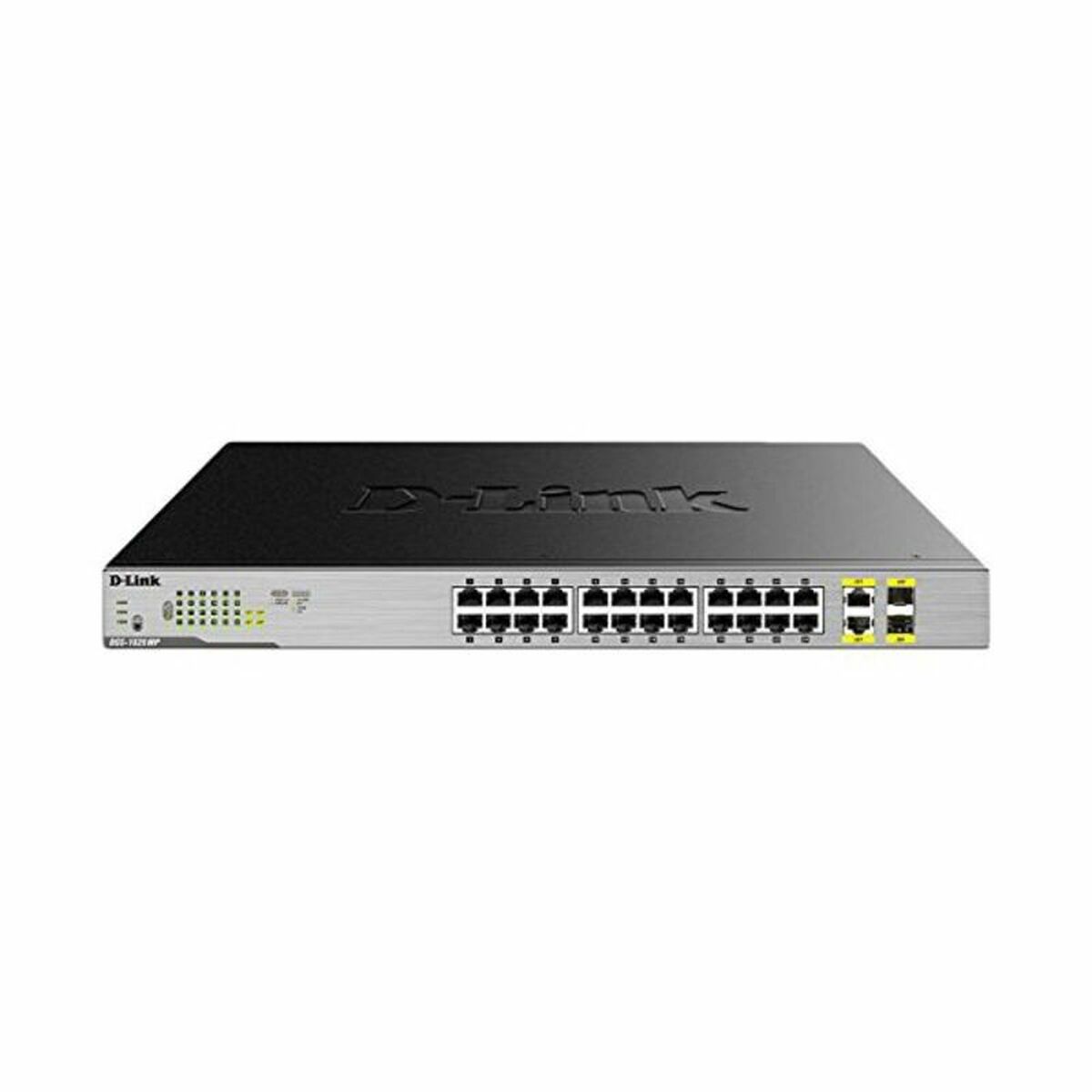

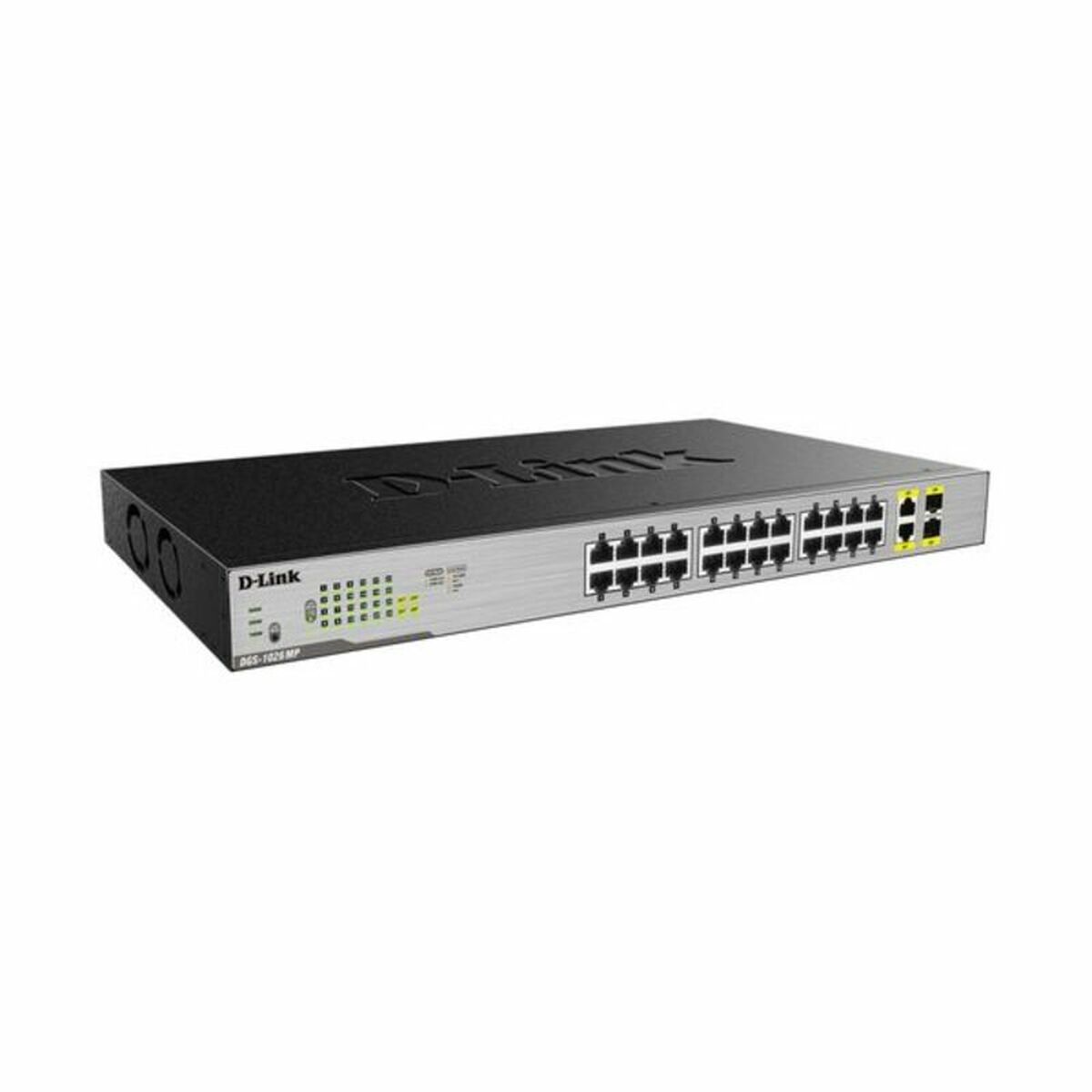

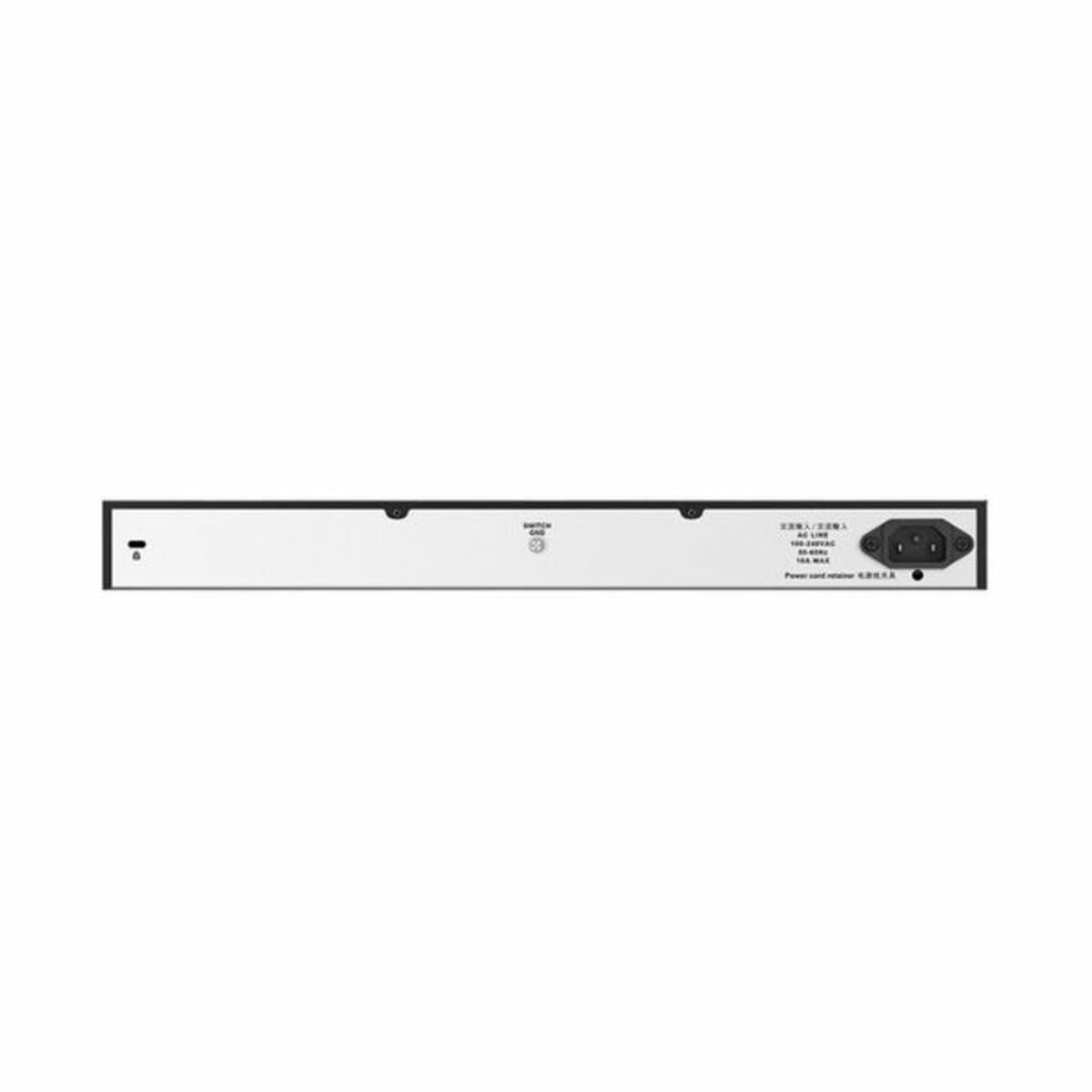

The DGS-1026MP from D-Link is a professional cabinet switch designed for network environments that require high connection density and energy efficiency. This model features 24 RJ45 Ethernet LAN ports supporting transmission speeds of 10/100/1000 Mbps, enabling reliable connectivity for multiple network devices such as computers, access points, or IP cameras. It also includes 2 SFP ports for fiber optic links, providing extra flexibility for expansions and backbone connections in more demanding installations. The device supports PoE (Power over Ethernet) technology on each port, with a combined power output of up to 30 W, allowing compatible devices to be powered directly through the network cable, simplifying installation and reducing the need for additional power cords. Its robust structure, made of high-quality metal and plastic, ensures durability and efficient heat dissipation, suitable for rack cabinet setups and technical rooms. The black finish gives it a professional and discreet appearance, fitting various work environments. It supports an input voltage of 240 V, making it compatible with standard electrical infrastructures in professional installations. The D-Link DGS-1026MP is ideal for businesses and organizations needing a versatile and scalable solution for wired network management, ensuring continuous performance and easy integration into existing infrastructures.

• Ports:
  • 2
  • 24
  • 26
• Speed:
  • 10/100/1000 Mbps
  • 1 Gbps
• Energy consumption: 444 W
• Ø 13 cm: x 2
• Approx. dimensions: 44 x 25 x 4,4 cm
• Product with plug: Yes
• Approx. weight: 3,1 Kg
• Type of plug: Plug EU
• Type: Cabinet Switch
• Colour:
  • Black
  • noir
• Power supply:
  • Electric Network
  • Iincluded
• Material:
  • Metal
  • Plastic
  • Silver
• Power:
  • 30 W
  • 370 W
• Voltage:
  • 240 V
  • 100 - 240 V
• Ventilator: 2
• Connections:
  • Ethernet LAN
  • RJ45 x 24
  • SFP
• Frequency: 50 - 60 Hz
• Amperage: 1 A
• AC input frequency: 50-60 Hz
• Width: 44 cm
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º

26 Port Gigabit Max PoE Switch DGS-1026MP The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones. Power over Ethernet The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W. The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems. Expand Your Network With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface. Energy Efficient To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required. Hassle-Free Setup The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.

• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Installed SFP modules quantity: 1
• Combo SFP ports quantity: 2
• Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• Auto MDI/MDI-X: Y
• MAC address table: 8192 entries
• Switching capacity: 52 Gbit/s
• Throughput: 38.69 Mpps
• Store-and-forward: Y
• Product colour: Black, Grey
• LED indicators: Activity, Link, PoE, Power, Power fail, Speed
• Number of fans: 2 fan(s)
• Safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1
• Certification: FCC Class A CE CCC RoHS VCCI BSMI RCM
• Buffer size: 512 KB
• Mean time between failures (MTBF): 205975 h
• Shipping (inner) case height: 41 cm
• Shipping (inner) case width: 20.5 cm
• Shipping (inner) case length: 52 cm
• Shipping (inner) case net weight: 8.39 kg
• Products per shipping (inner) case: 2 pc(s)
• Pallet gross weight (air): 281.8 kg
• Master (outer) cases per pallet (air): 30 pc(s)
• Products per pallet (air): 60 pc(s)
• Pallet gross length: 110 cm
• Pallet gross width: 120 cm
• Pallet height (air): 136.5 cm
• Pallet gross weight (sea): 369.8 kg
• Master (outer) cases per pallet (sea): 40 pc(s)
• Products per pallet (sea): 80 pc(s)
• Pallet height (sea): 177.5 cm
• Shipping (inner) case gross weight: 8.79 kg
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Power consumption (max): 444.1 W
• Power over Ethernet (PoE): Y
• Power over Ethernet (PoE) ports quantity: 24
• Power over Ethernet (PoE) power per port: 30 W
• Total Power over Ethernet (PoE) budget: 370 W
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 1515 BTU/h
• Width: 440 mm
• Depth: 250.4 mm
• Height: 44 mm
• Weight: 3.1 kg
• Package width: 388 mm
• Package depth: 506 mm
• Package height: 90 mm
• Package weight: 3.7 kg

If you're thinking about building up the catalogue of your dropshipping shop with the newest IT and electronics products on the market, buy Cabinet Switch D-Link DGS-1026MP at wholesale price from BigBuy and a comprehensive online selection of network switches wholesale.
