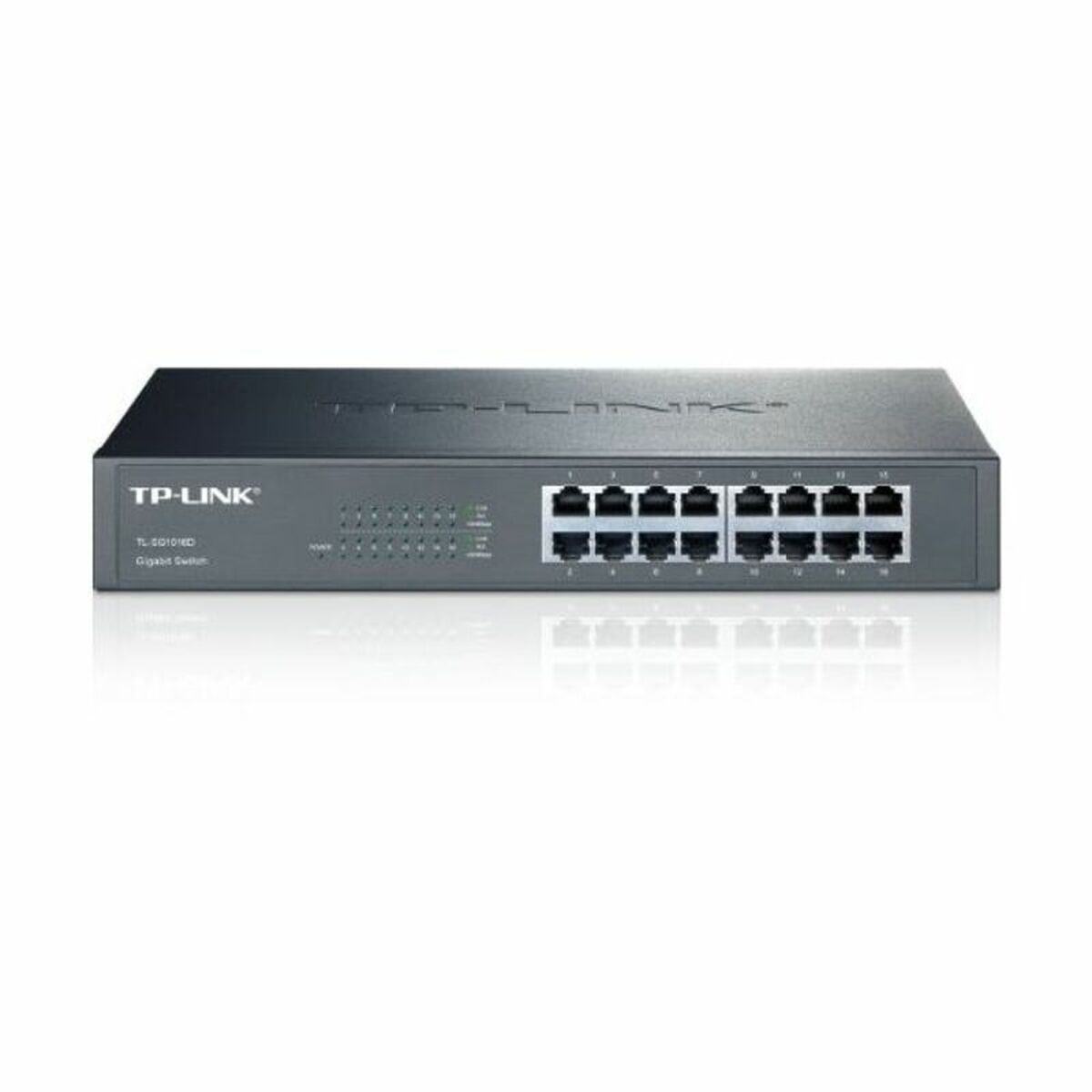

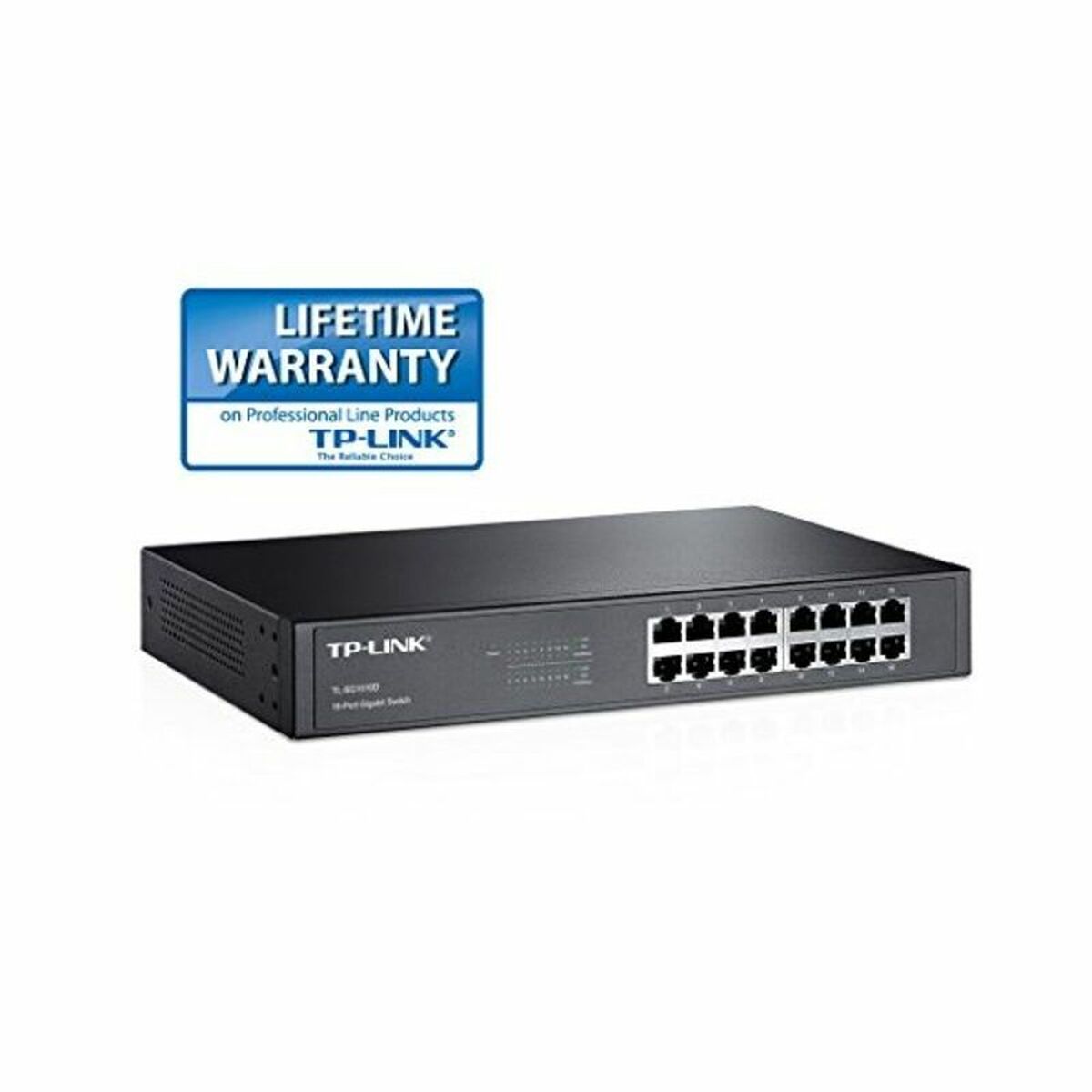

The TP-Link TL-SG1016D is an unmanaged cabinet switch designed for small and medium networks that need stable, high-speed wired connectivity with no advanced configuration. It features 16 RJ45 Gigabit Ethernet ports (10/100/1000), allowing you to connect multiple devices such as PCs, servers, network printers or access points with enough bandwidth for large file sharing and heavy traffic. Its 32 Gbit/s switching capacity and full duplex operation ensure efficient data flow across all ports, reducing bottlenecks in high workload environments. It complies with key IEEE standards (802.3, 802.3u, 802.3ab, 802.3x, 802.1Q, 802.1p), ensuring compatibility with most network devices and support for features such as basic traffic prioritization and tagged VLAN frames in networks configured by other equipment. Power is supplied via a mains input supporting 100‑240 V, 50‑60 Hz, and it includes LED status indicators to check the status of each port and the unit at a glance. Its chassis, available in white, black or grey depending on the version, is ready for rack mounting, making it easy to integrate neatly into professional communication cabinets. With a weight of approximately 1.1 to 1.39 kg and a robust design built for typical technical room conditions, this TP-Link TL-SG1016D switch provides a reliable, straightforward solution to expand wired network ports in business or office infrastructures.

• Connections:
  • RJ45
  • Ethernet LAN
• Product with plug: Yes
• Type of plug: Plug EU
• Power supply:
  • Electric Network
  • CA cable
  • AC 100-240 V / 50-60 Hz
  • Iincluded
  • CA
• Colour:
  • Black
  • White
  • Grey
• Voltage:
  • 100-240 V
  • 220 V
  • 240 V
  • 100 - 240 V
• Frequency:
  • 50-60 Hz
  • 50 Hz
• Characteristics:
  • With cable
  • LED in operation indicator
• Platform: Windows
• Ports: 16
• AC input frequency: 50-60 Hz
• Type: Stackable
• Approx. weight: 1,1 kg
• Weight: 1,39 Kg
• Working range for humidity: 10 % - 90 %
• Compatible: PC
• Approx. temperature: -40º / 70º
• Includes: User manual

What This Product Does The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. TP-LINK Green Technology This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled. High Performance All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly. Easy to Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 16
• Power connector: DC-in jack
• Networking standards: IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-TX,1000BASE-T
• Cable types supported: Cat3,Cat4,Cat5,Cat5e
• Full duplex: Y
• Flow control support: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• MAC address table: 8000 entries
• Switching capacity: 32 Gbit/s
• Supported data transfer rates: 10/100 Mbps
• Forwarding rate: 23.8 Mpps
• Store-and-forward: Y
• Maximum data transfer rate: 1 Gbit/s
• Jumbo frames support: Y
• Jumbo frames: 10000
• Supported network protocols: CSMA/CD, TCP/IP
• Rack mounting: Y
• Stackable: Y
• Product colour: Black
• LED indicators: Y
• Certification: FCC, CE, RoHs
• AC input voltage: 220 V
• AC input frequency: 50 Hz
• Power consumption (max): 9.26 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Operating temperature (T-T): 32 - 104 °F
• Heat dissipation: 31.6 BTU/h
• Width: 294 mm
• Depth: 180 mm
• Height: 44 mm
• Cables included: AC
• User guide: Y
• Package type: Box
• Package width: 400 mm
• Package depth: 250 mm
• Package height: 80 mm
• Dimensions (WxDxH): 294 x 180 x 44 mm
• Connectivity technology: Wired
• Bandwidth: 32 Gbit/s
• Power requirements: 100 - 240V, 50/60Hz
• Power supply type: AC
• Networking features: Gigabit Ethernet
• Connectivity LEDs: Y
