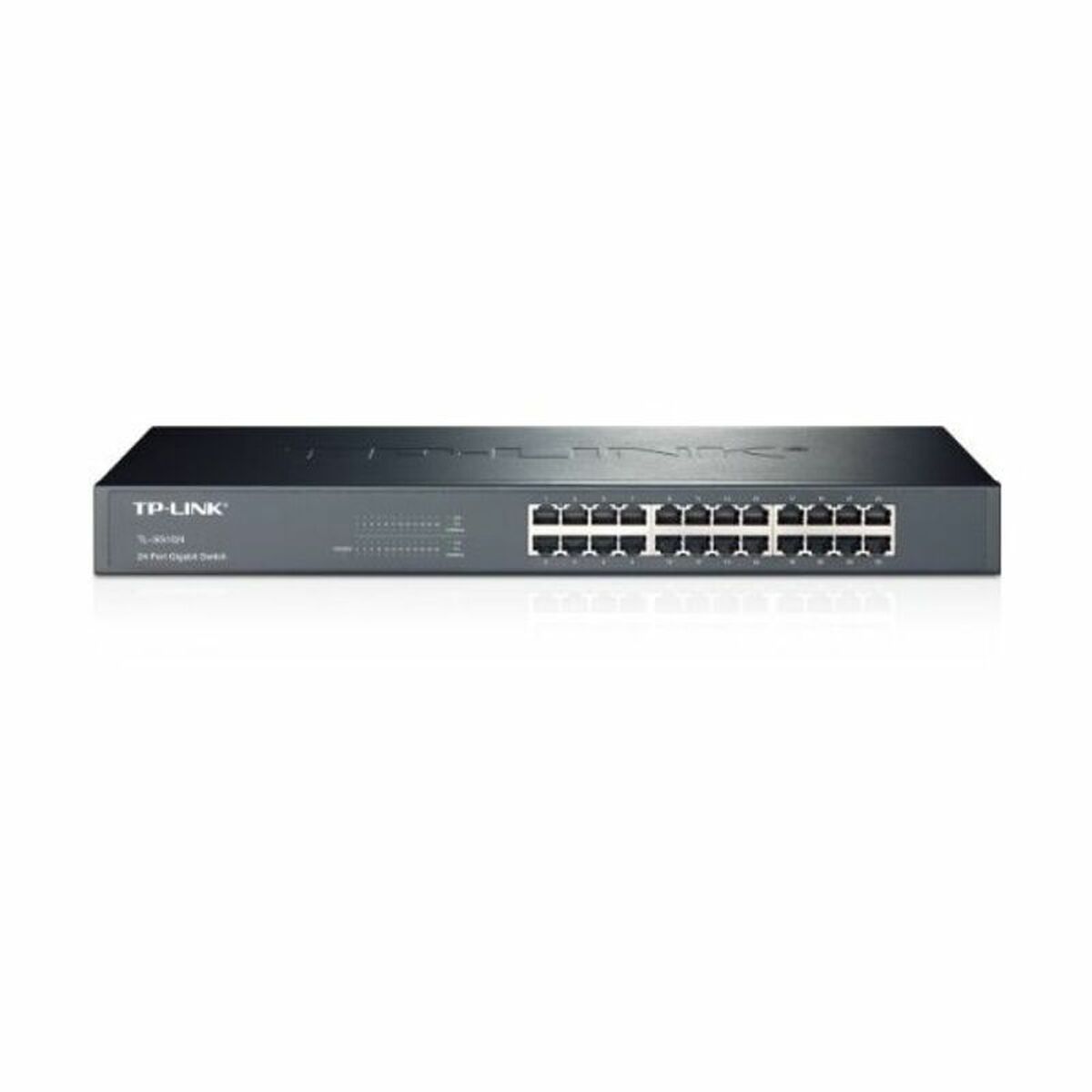

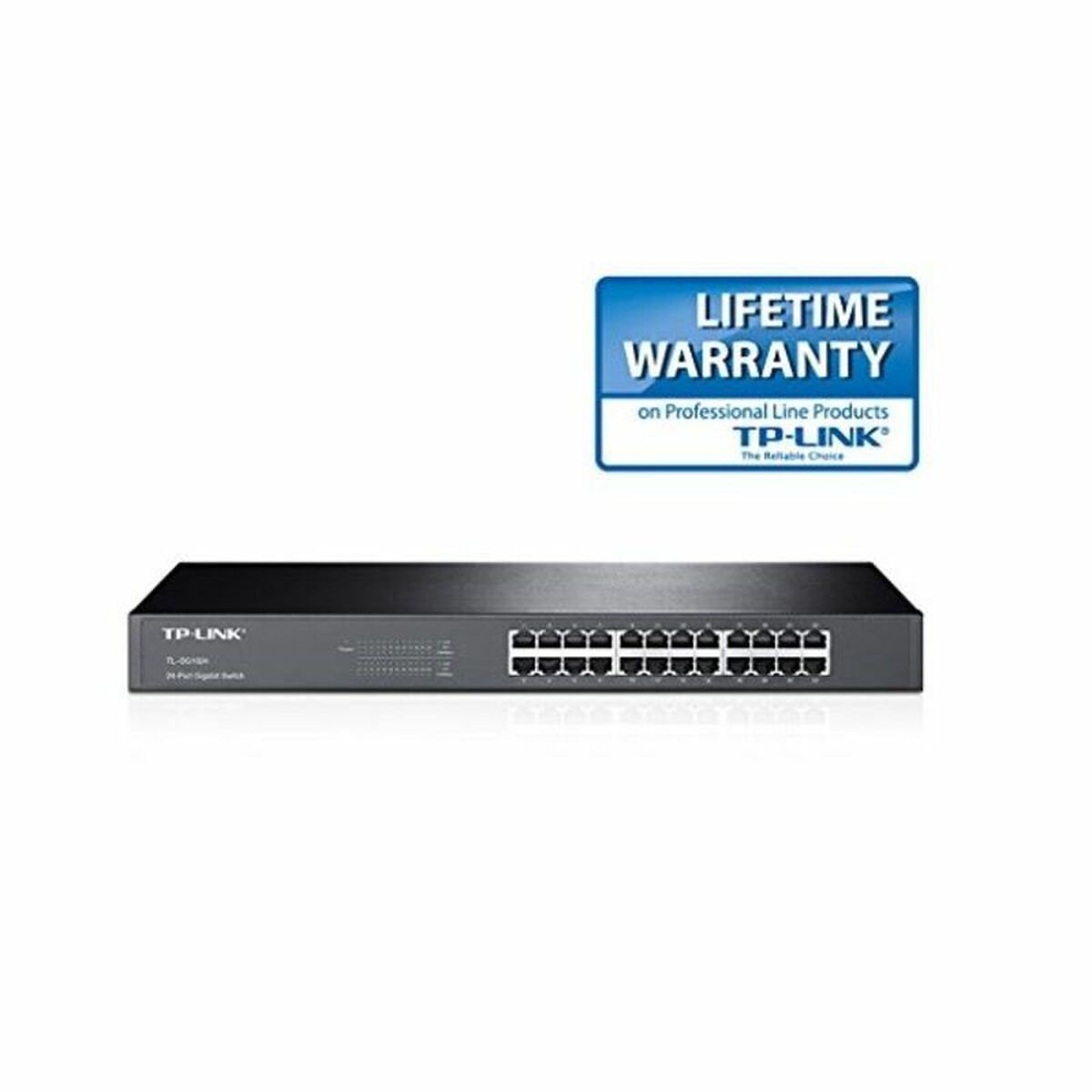

The TP-Link TL-SG1024 is an unmanaged rack switch designed for professional environments that need reliable, simple connectivity, offering 24 Gigabit Ethernet RJ45 ports (10/100/1000) with full-duplex operation to maximize network performance. Its black housing and 1U, 44 cm wide format allow standard rack mounting in communication cabinets, optimizing space in technical rooms or offices. Each port supports speeds up to 1000 Mbps, with a switching capacity of 48 Gbit/s, enabling smooth transfer of large data volumes on local networks with heavy traffic. It includes an 8000-entry MAC table, suitable for networks with many connected devices, and is compatible with common standards such as IEEE 802.3, 802.3u, 802.3ab, 802.1Q and 802.1p, ensuring interoperability with a wide range of equipment and supporting basic traffic prioritization and VLAN when integrated into infrastructures that require it. It operates on 100–240 V ~ 50–60 Hz power, comes with an AC power cable and has front LED status indicators to quickly monitor port and power status. Its design with passive or very low-noise cooling, together with an operating temperature range of approximately -40 ºC to 70 ºC and humidity between 10% and 90%, provides stability under different environmental conditions in properly installed cabinets or racks. The device is supplied with a user manual, enabling quick start-up with no advanced configuration, making it a practical solution to expand ports in Gigabit networks for businesses, educational centres or small installations that need a robust, simple and stable switch.

• Connections:
  • RJ45
  • RJ45 x 24
  • SATA
  • Ethernet LAN
• Product with plug: Yes
• Type of plug: Plug EU
• Power supply:
  • Electric Network
  • CA cable
  • Iincluded
  • AC
• Colour: Black
• Voltage:
  • 100-240 V
  • 100 - 240 V
• Frequency:
  • 50-60 Hz
  • 50 - 60 Hz
• Characteristics:
  • With cable
  • LED in operation indicator
• Ports: 24
• IP rating: IP55
• Speed:
  • 48 MB/s
  • 1000 Mbps
• AC input frequency: 50-60 Hz
• Width: 44 cm
• Working range for humidity: 10 % - 90 %
• Form factor: 1U
• Approx. temperature: -40º / 70º
• Includes: User manual
• Nuclei: 1 core

What This Product Does The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. TP-LINK Green Technology This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled. High Performance All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly. Ease of Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance

• Switch type: Unmanaged
• Quality of Service (QoS) support: Y
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Networking standards: IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 1000BASE-T,100BASE-TX,10BASE-T
• Full duplex: Y
• Auto MDI/MDI-X: Y
• MAC address table: 8000 entries
• Switching capacity: 48 Gbit/s
• Supported data transfer rates: 10/100/1000 Mbps
• Forwarding rate: 35.7 Mpps
• Store-and-forward: Y
• Maximum data transfer rate: 1 Gbit/s
• Jumbo frames support: Y
• Jumbo frames: 10000
• Supported network protocols: CSMA/CD, TCP/IP
• Rack mounting: Y
• Product colour: Black
• LED indicators: Y
• Certification: FCC, CE, RoHS
• Power supply included: Y
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Power consumption (typical): 13.08 W
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Operating temperature (T-T): 32 - 104 °F
• Heat dissipation: 44.63 BTU/h
• Width: 440 mm
• Depth: 180 mm
• Height: 44 mm
• Cables included: AC
• User guide: Y
• Rack mount kit: Y
• Package width: 528 mm
• Package depth: 250 mm
• Package height: 80 mm
• Dimensions (WxDxH): 440 x 180 x 44 mm
• Connectivity technology: Wired
• Bandwidth: 48 Gbit/s
• Connectivity LEDs: Y
• Dimensions (W x D x H) (imperial): 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")
