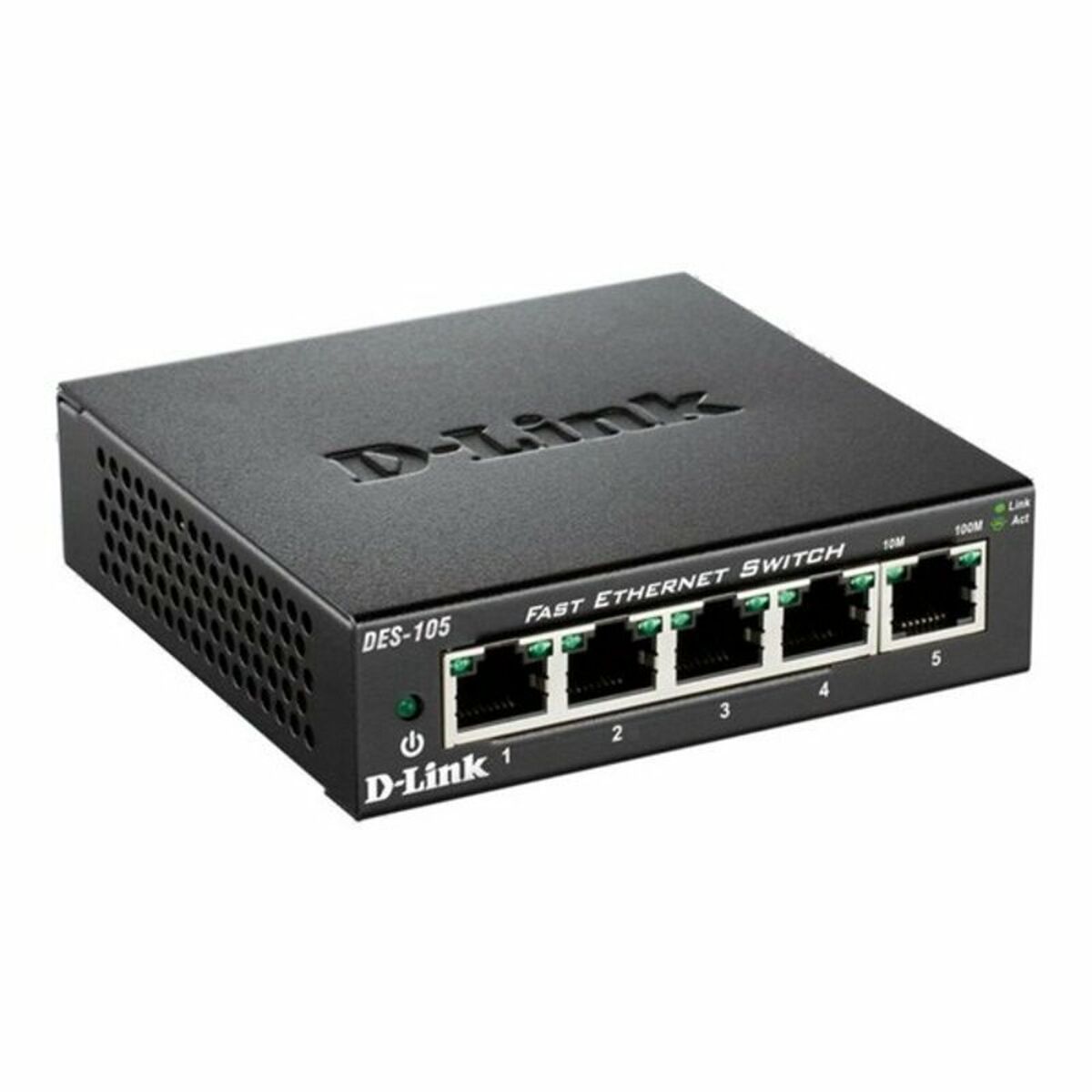

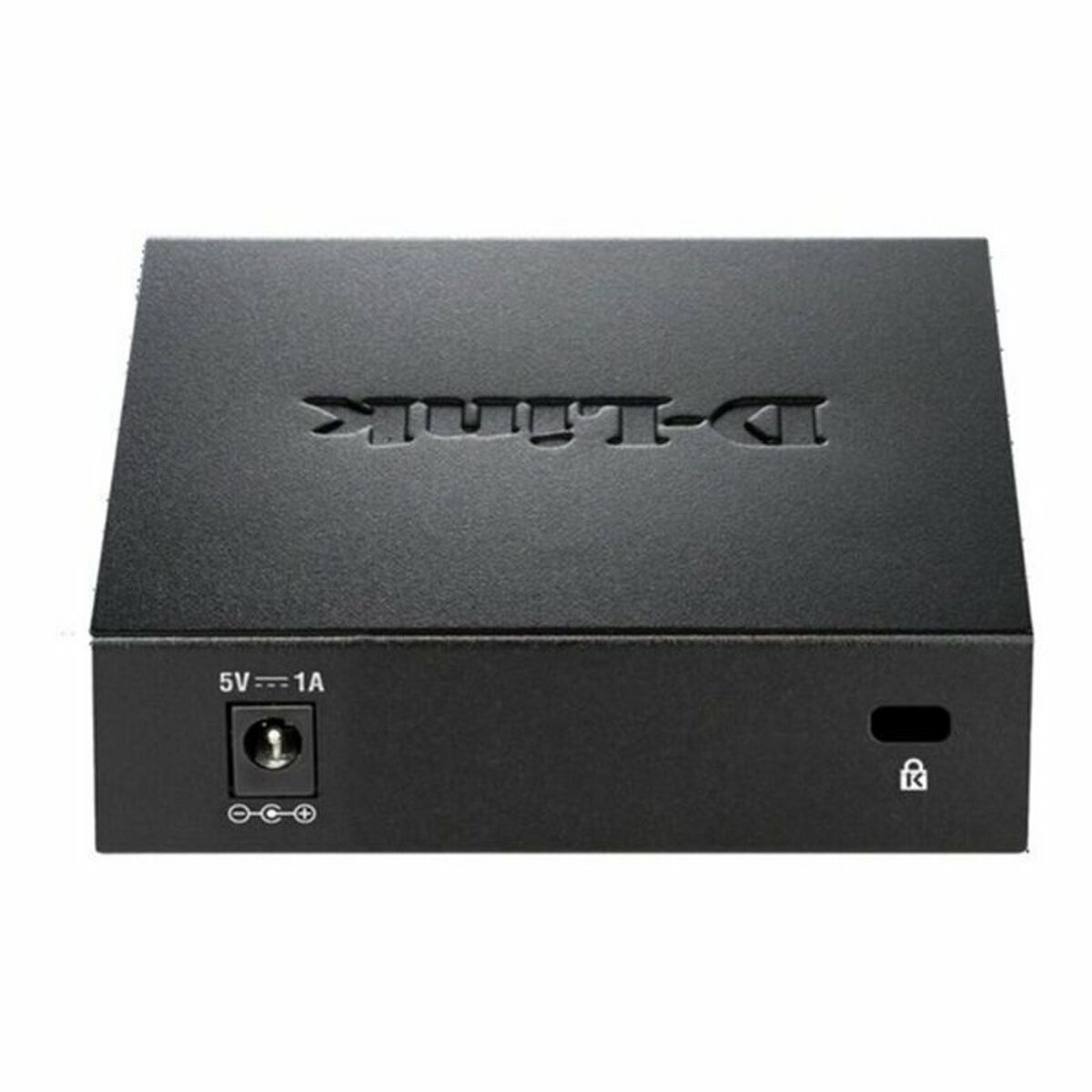

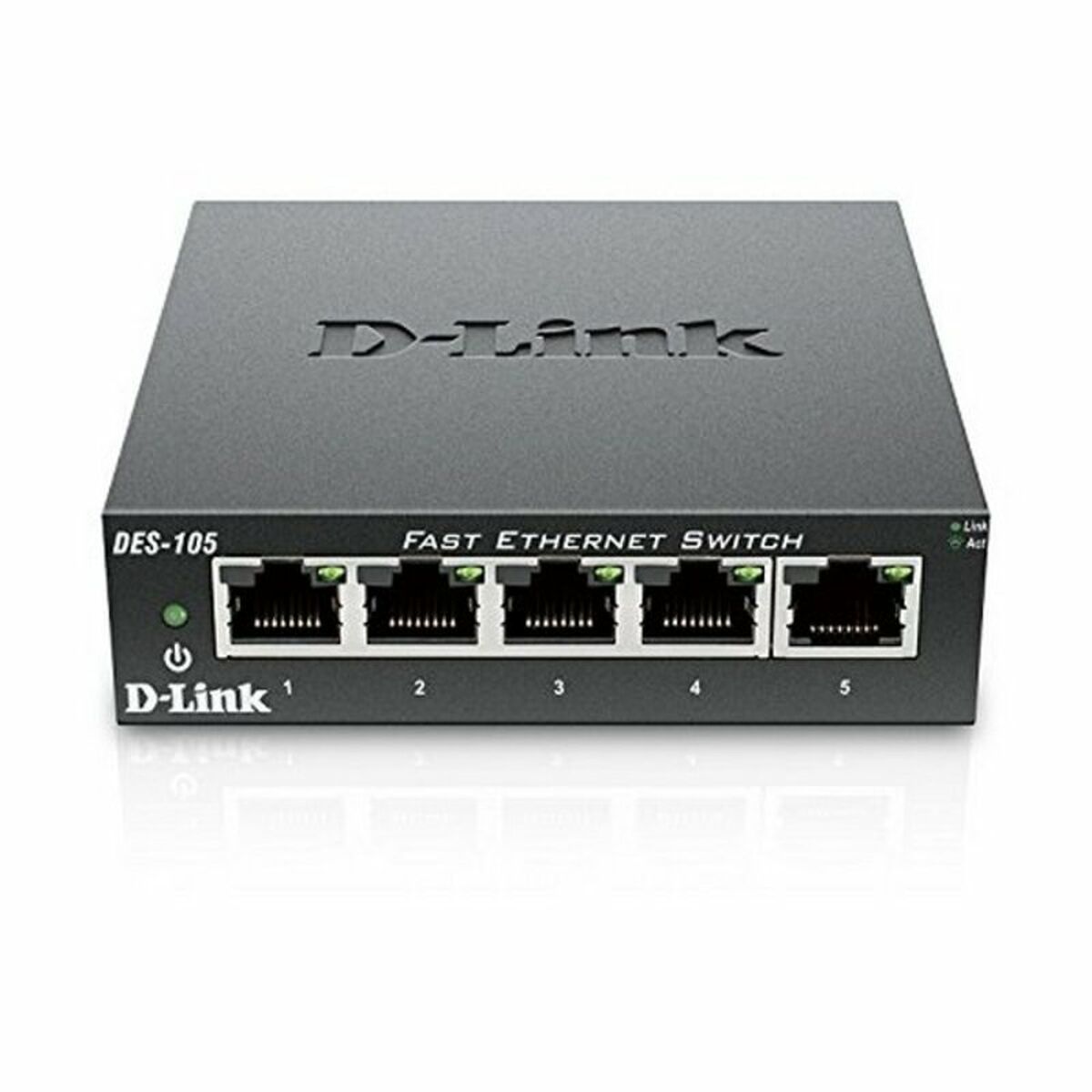

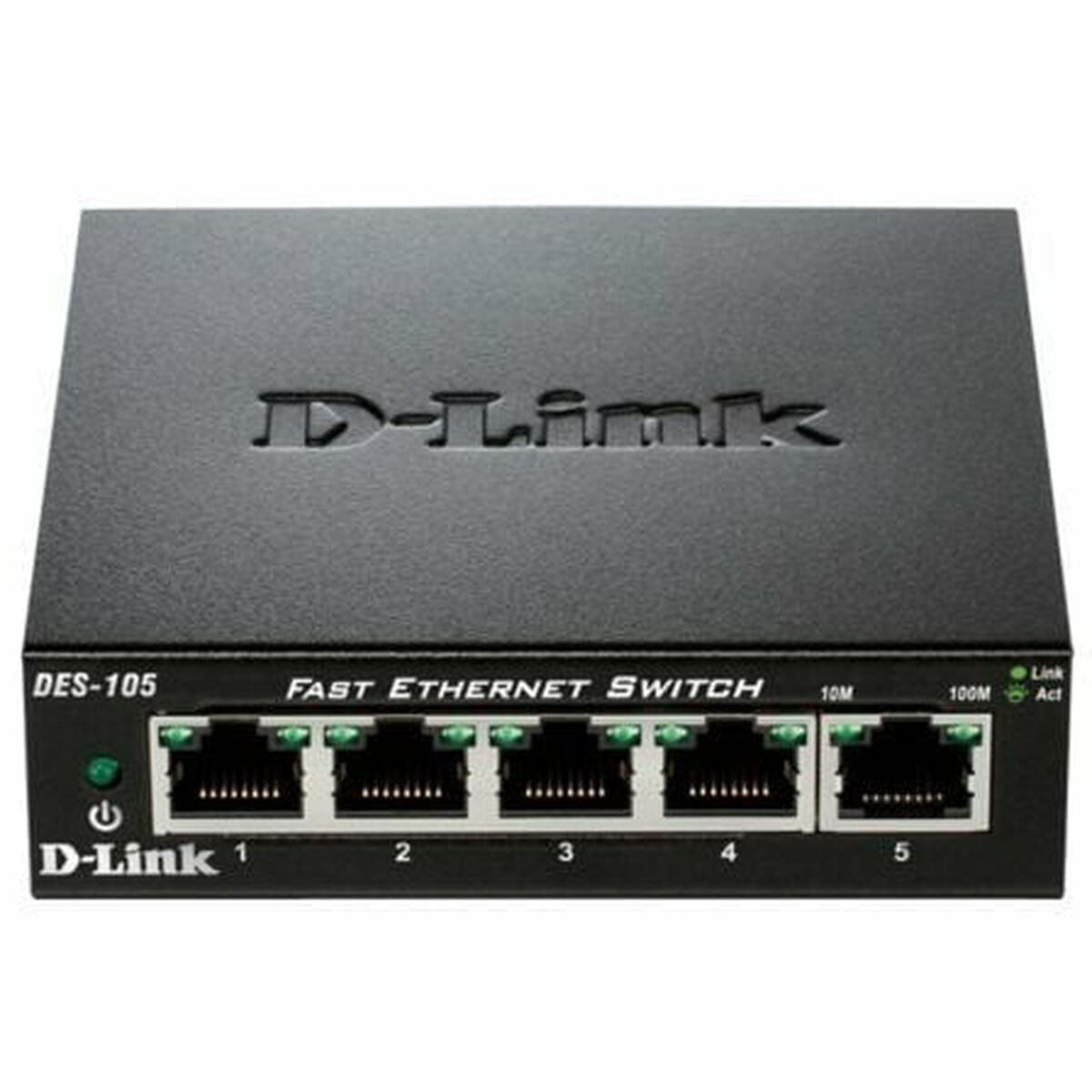

Desktop Switch D-Link DES-105/E LANDesktop Switch D-Link DES-105/E LANDesktop Switch D-Link DES-105/E LANDesktop Switch D-Link DES-105/E LAN
ā€Œ
ā€Œ

Description

The DES-105/E by D-Link is a desktop switch designed to provide efficient and reliable connectivity in home or small office environments, making it easy to expand your local network. This device features 5 RJ45 ports supporting speeds up to 10/100 Mbps, allowing simultaneous connection of multiple devices such as computers, network printers, or IP cameras with stable transmission and low latency. It stands out for its robust metal housing, ensuring durability and greater resistance to daily use, as well as excellent heat dissipation. Its compact black design is discreet and fits seamlessly into any workspace. As a wired device, it delivers secure and consistent connections, complemented by LED indicators for real-time monitoring of network status on each port. It operates with a 5 V power supply via the included power cable, enabling immediate integration without complex setup or additional software. This switch is ideal for those looking to easily and effectively optimize and expand wired network connections in home or professional settings, prioritizing reliability and ease of use.



  • Amperage: 1 A
  • AC input voltage: 5 V
  • Material: Metal
  • Connections:
    • RJ45
    • SATA
    • RJ45 x 5
  • Approx. diameter: Ƙ 10 cm
  • Colour: Black
  • Product with plug: Yes
  • Type of plug: Plug EU
  • Type: Wired
  • Power supply:
    • Electric Network
    • Electric cable
  • Speed:
    • 10/100 Mbps
    • 1000 Mbps
  • Characteristics:
    • With cable
    • LED indicator
  • Voltage: 5 V
  • Working range for humidity: 10 % - 90 %

- Plug and Play operation - 5 Fast Ethernet ports - Non-blocking architecture: simultaneous full speed on all ports - Fanless, silent operation to fit in any environment - Quality of Service (QoS) queues for traffic prioritisation - Solidly built with metal housing - D-Link Greenā„¢ technology, saves energy and increases the product’s lifespan D-Link’s DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms. Robust design The DES-105 are designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft. QoS (Quality of Service) Despite being an unmanaged, Plug and Play switch, the DES-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality. Power-saving technology The DES-105 is part of D-Link Greenā„¢, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.


  • Quality of Service (QoS) support: Y
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
  • 10G support: N
  • Copper ethernet cabling technology: 100BASE-TX,10BASE-T
  • Full duplex: Y
  • Flow control support: Y
  • Auto MDI/MDI-X: Y
  • MAC address table: 2000 entries
  • Switching capacity: 1 Gbit/s
  • Supported data transfer rates: 10/100 Mbps
  • Store-and-forward: Y
  • Maximum data transfer rate: 0.1 Gbit/s
  • Jumbo frames support: Y
  • Packet buffer memory: 0.384 MB
  • MAC address filtering: Y
  • Rack mounting: N
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Link, Power
  • Certification: RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
  • Mean time between failures (MTBF): 495709 h
  • Shipping (inner) case height: 36.6 cm
  • Shipping (inner) case width: 23 cm
  • Shipping (inner) case length: 33.5 cm
  • Shipping (inner) case net weight: 4.5 kg
  • Products per shipping (inner) case: 10 pc(s)
  • Pallet gross weight (air): 434 kg
  • Master (outer) cases per pallet (air): 75 pc(s)
  • Products per pallet (air): 750 pc(s)
  • Pallet gross length: 120 cm
  • Pallet gross width: 110 cm
  • Pallet height (air): 2.04 m
  • Pallet gross weight (sea): 434 kg
  • Master (outer) cases per pallet (sea): 75 pc(s)
  • Products per pallet (sea): 750 pc(s)
  • Pallet height (sea): 2.04 m
  • Shipping (inner) case gross weight: 5.5 kg
  • Input current: 1 A
  • Power consumption (typical): 1.9 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -10 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Weight: 265 g
  • Package width: 170 mm
  • Package depth: 220 mm
  • Package height: 62 mm
  • Package weight: 450 g
  • Data transfer rate: 200 Mbit/s
  • Dimensions (WxDxH): 100 x 98 x 28 mm
  • Connectivity technology: Wired
  • Input voltage: 5 V


If you're thinking about building up the catalogue of your dropshipping shop with the newest IT and electronics products on the market, buy Desktop Switch D-Link DES-105/E LAN at wholesale price from BigBuy and a comprehensive online selection of network switches wholesale.
