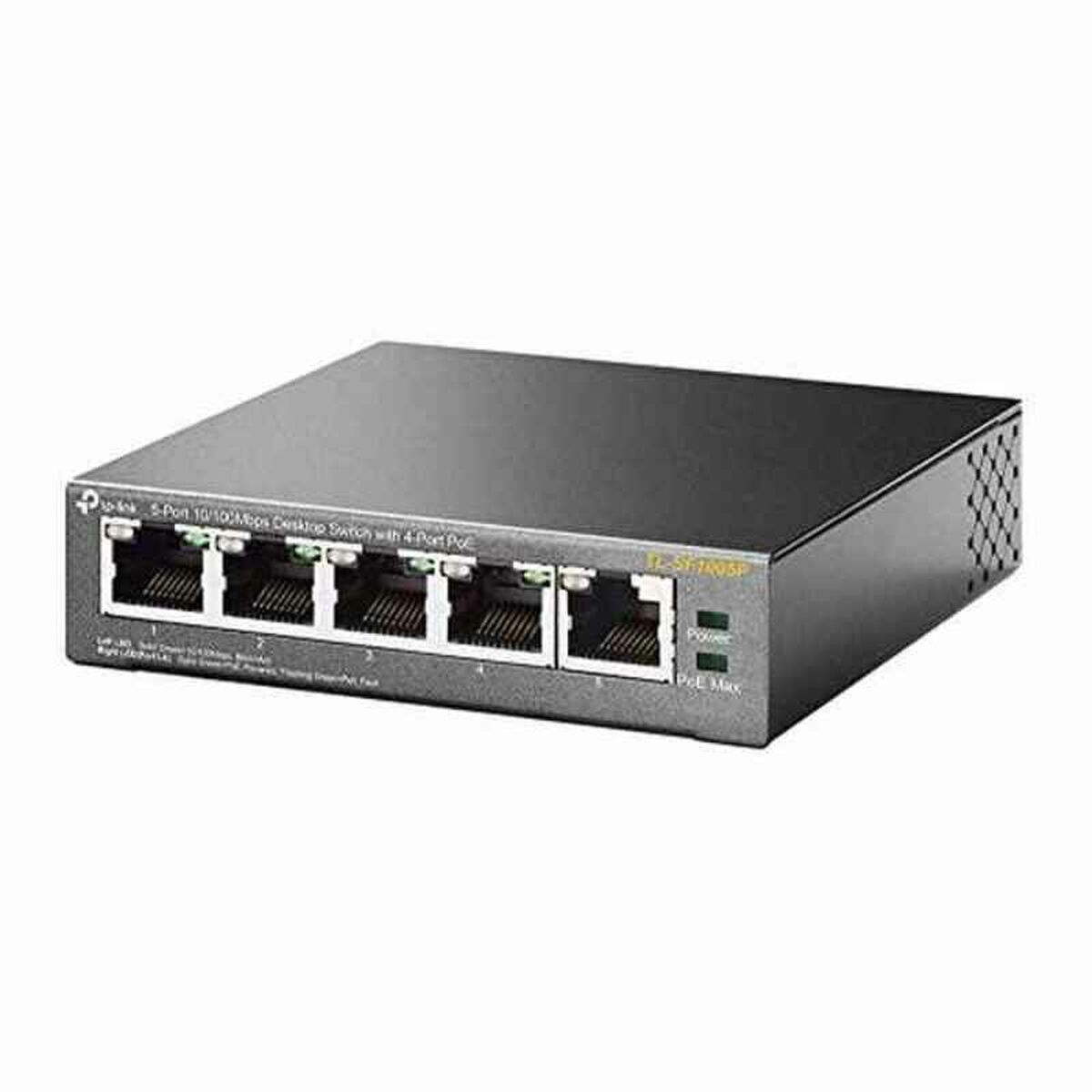

The TP-Link TL-SF1005P is an unmanaged desktop switch designed for small offices, shops or home networks that need to connect several devices in a simple and reliable way. It features 5 Fast Ethernet (10/100) RJ45 ports, ideal for computers, network printers, IP cameras or access points, operating in full-duplex mode for smooth data exchange. Its 1 Gbit/s switching capacity and 2,000-entry MAC address table allow efficient traffic management even with multiple devices connected simultaneously. It offers 4 PoE ports compliant with the IEEE 802.3af standard, supplying power to devices such as surveillance cameras or IP phones directly over the Ethernet cable, reducing the need for separate power adapters and simplifying installation. The device includes LED status indicators for quick monitoring of each port and power, and comes in a robust metal case in black, with compact dimensions of 9.98 x 9.8 x 2.5 cm suitable for desktop use or installation in confined spaces. It operates with a 48 V power supply and supports mains input of 220 V / 50 Hz, with maximum power consumption around 58 W and rated current of 1.25 A, within a wide operating temperature range from -40 ºC to 70 ºC and relative humidity between 10 % and 90 %, providing stability under different environmental conditions. It includes a user manual for quick setup and is a practical solution to provide connectivity and basic PoE power to small network deployments with low cost and complexity.

• Ports:
  • 4
  • 5
• Colour:
  • Metal
  • Black
• Speed:
  • 10/100 Mbps
  • 1 Gbps
• Technology: PoE
• Power supply:
  • Electric Network
  • Iincluded
  • AC
• Approx. dimensions: 9,98 x 9,8 x 2,5 cm
• Product with plug: Yes
• Type of plug: Plug EU
• Material: Metal
• Voltage:
  • 48 V
  • 220 V
• Frequency: 50 Hz
• Connections:
  • SATA
  • RJ45 x 5
• Characteristics: LED in operation indicator
• Power: 58 W
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Includes: User manual
• Amperage: 1,25 A
• Nuclei: 1 core

PoE Switches for Your Ultra Convenience 5-Port 10/100Mbps Desktop Switch with 4-Port PoE Power over Ethernet 4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). Intelligent Power Management When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation. Sturdy Metal Casing Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
• Networking standards: IEEE 802.3af,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX
• Cable types supported: Cat3,Cat4,Cat5,Cat5e
• Full duplex: Y
• Flow control support: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• MAC address auto-learning supported: Y
• MAC address auto-aging supported: Y
• MAC address table: 2000 entries
• Switching capacity: 1 Gbit/s
• Store-and-forward: Y
• Product colour: Black
• LED indicators: Y
• Certification: FCC, CE, RoHS
• Maximum cable length: 100 m
• Power supply included: Y
• Output voltage: 48 V
• Output current: 1.25 A
• Power consumption (max): 63.51 W
• Power over Ethernet (PoE): Y
• Power over Ethernet (PoE) ports quantity: 4
• Total Power over Ethernet (PoE) budget: 58 W
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 5.73 BTU/h
• Width: 99.8 mm
• Depth: 97.8 mm
• Height: 25 mm
• User guide: Y
• AC adapter included: Y
• Package type: Box
• Package width: 196 mm
• Package depth: 131 mm
• Package height: 121 mm
