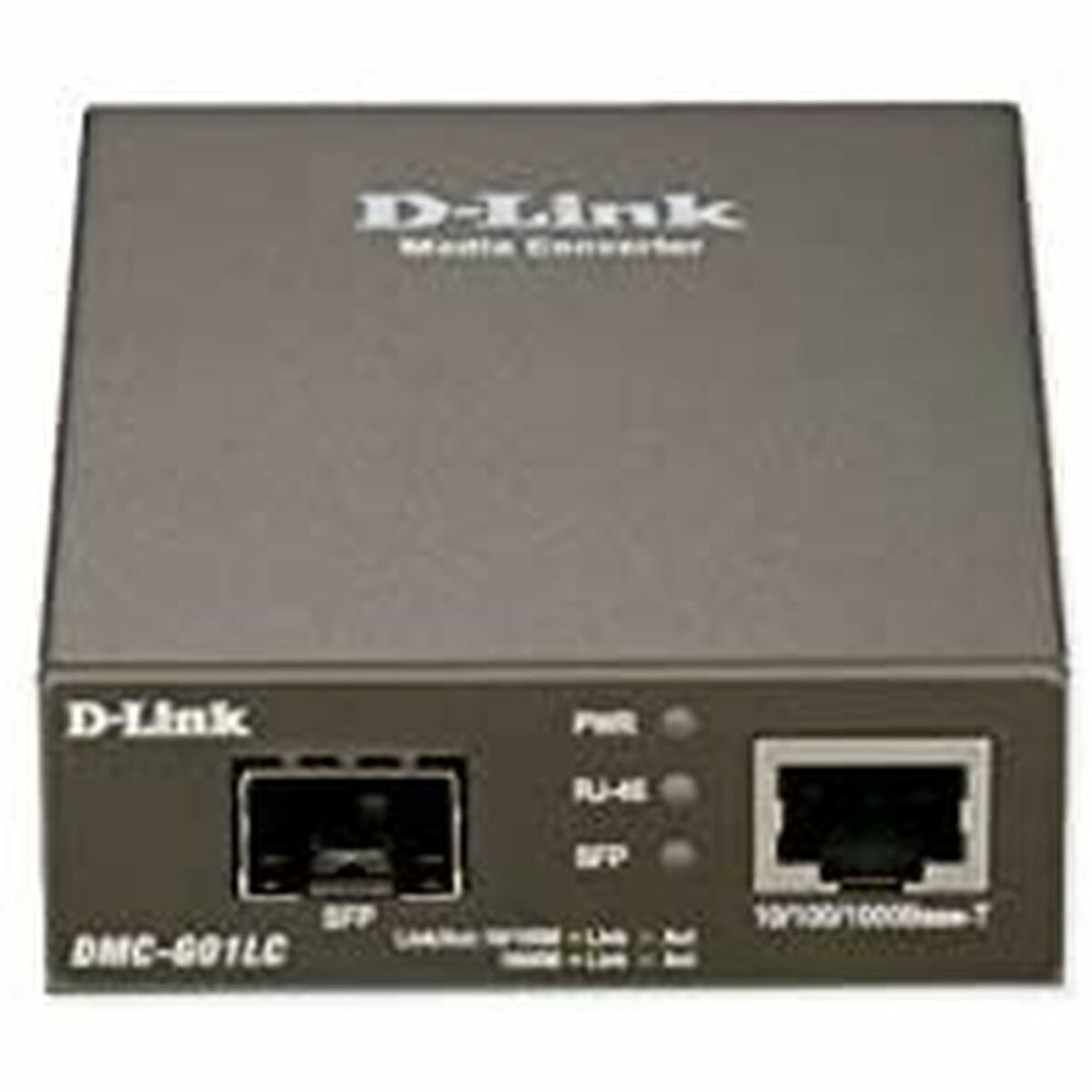

The D-Link DMC-G01LC Multimode Media Converter stands out by providing an efficient and robust solution for converting signals between Ethernet and fiber optic networks, enabling seamless integration of both technologies in environments that require reliable, high-speed transmission. This model supports a data transfer rate of up to 1000 Mbit/s (Gigabit Ethernet), ensuring smooth handling of large data volumes and demanding network traffic. Compatible with IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x standards, it facilitates interoperability in heterogeneous infrastructures, easily adapting to various enterprise network environments or data centers. It features RJ45 connections for copper Ethernet LAN cabling and supports SFP modules for fiber optics, expanding its range and flexibility for connecting distant devices. Its grey metal housing offers durability and effective heat dissipation, while its compact size (70 mm) allows for installation in tight spaces or communication cabinets. Operates with a 5 V power supply and is capable of withstanding intensive continuous use, demonstrating notable reliability with a mean time between failures estimated at over 500,000 hours. The converter is ideal for upgrading existing networks, connecting remote branches via fiber optics, and reducing electromagnetic interference, maintaining network integrity and performance even in critical environments. In summary, the D-Link DMC-G01LC is a versatile, high-performance tool for media conversion in professional infrastructures, optimizing network connectivity and compatibility with assured stability and efficiency.

• Type:
  • Wired
  • Fibre optic
  • Remote Control
• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • Ethernet LAN
  • SFP
  • RJ45
• Power supply:
  • Electric Network
  • Wired
  • CC
• Colour: Grey
• Speed:
  • 1000 Mbit/s
  • 10/100/1000 Mbps
• Output voltage: 5 V
• Material: Metal
• Voltage: 5 V
• Interface: Gigabit Ethernet
• Characteristics: LED in operation indicator
• Amperage: 1 A
• Working range for humidity: 10 % - 90 %
• Data transfer: 1000 Mbit/s

D-Link’s DMC-G01LC standalone media Converter turns a copper Ethernet link into a fiber link, allowing for an ultra-fast, long distance connection. Installation of a standalone media converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, a standalone media converter provides the same high-quality conversion on a unit-by-unit basis. You can save space and cut costs while still extending your network over long distances of 10 km and beyond on a fiber optic line. SFP Optical Transceivers for Maximum Flexibility The fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps. 10/100/1000 Copper Speeds The copper side of the DMC-G01LC auto-negotiates to 10Mbps, 100Mbps or 1000Mbps, ensuring the connection functions at the highest possible speed while remaining compatible with the link partner. It supports auto MDI/MDIX, half/full duplex operation at 10/100 Mbps and full duplex operation at 1000 Mbps. Plug & Play The DMC-G01LC supports standard technologies that makes it easy to operate, like 802.3u. 802.3x and 802.3ab. There’s no management software to configure – simply connect the power, connect the cables, and start converting.

• Maximum data transfer rate: 1000 Mbit/s
• Networking standards: IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Auto MDI/MDI-X: Y
• Fiber optic connector: SFP
• Connectivity technology: Wired
• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 1
• DC-in jack: Y
• Mean time between failures (MTBF): 506711 h
• Internal: N
• LED indicators: Y
• Product colour: Grey
• Safety: LVD, UL/cUL
• Certification: CE, FCC, VCCI, BSMI
• Input voltage: 230 - 240 V
• Output voltage: 5 V
• Output current: 1 A
• Width: 70 mm
• Depth: 95 mm
• Height: 25 mm
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -10 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Package width: 101 mm
• Package depth: 134 mm
• Package height: 95 mm
• Package weight: 358 g
• Shipping (inner) case length: 50.4 cm
• Shipping (inner) case width: 29.4 cm
• Shipping (inner) case height: 23.6 cm
• Shipping (inner) case net weight: 7.16 kg
• Products per shipping (inner) case: 20 pc(s)
• Pallet gross weight (air): 341.1 kg
• Master (outer) cases per pallet (air): 40 pc(s)
• Products per pallet (air): 800 pc(s)
• Pallet gross length: 110 cm
• Pallet gross width: 120 cm
• Pallet height (air): 131 cm
• Pallet gross weight (sea): 534.6 kg
• Master (outer) cases per pallet (sea): 64 pc(s)
• Products per pallet (sea): 1280 pc(s)
• Pallet height (sea): 2.02 m
• Shipping (inner) case gross weight: 8.04 kg
